Manual and Automatic in accordance with cues received from projector, Dimming of incandescent, CFL/FTL & LED lamps, Interface provision foe Light Automation with latest Digital Projection Servers, Prevents frequent fusing of lamps, Meets indian Electricity Rules, RF Interference Filters in some models to ensure normal Working in adverse conditions of electric supply and Environment, Tested to work in hot-tropical climate, Automatic control of Undimmed lamps

Four models are available

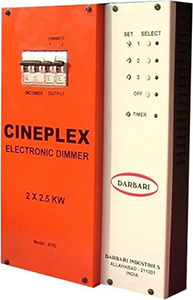

Cineplex’ Model 8182

1. 230V,50Hz,Single Phase 230V,50Hz,Single Phase
2. Dimmable Incandescent Load 2 x 2.5KW
3. Non-Dimmable Load 1 x 1KW
4. Delayed Switched Output for Inverter 1 x 1KW,AC
5. Time Delay adjustable 30 - 85 sec
6. Dimmable Range 0-100 %
7. Protection Incomer DP MCB 1 x 32A
8. Protection Outgoing SP MCB 2 x 10A
9. Dimming Technology Optically Isolated back to back thyristor switching
10. Cabinet Dimensions 250(H) x 360(W) x 75(D) mm
11. Cable Entry 3 nos holes at top

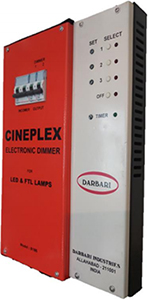

‘Cineplex’ Model 8186

1. 230V,50Hz,Single Phase 230V,50Hz,Single Phase
2. Dimmable Incandescent Load 2 x 2.5KW
3. Non-Dimmable Load 1 x 1KW
4. Delayed Switched Output for Inverter 1 x 1KW,AC
5. Time Delay adjustable 30 - 85 sec
6. Dimmable Range 0-100 %
7. Protection Incomer DP MCB 1 x 32A
8. Protection Outgoing SP MCB 2 x 10A
9. Dimming Technology Optically Isolated back to back thyristor switching
10. Cabinet Dimensions 250(H) x 360(W) x 75(D) mm
11. Cable Entry 3 nos holes at top

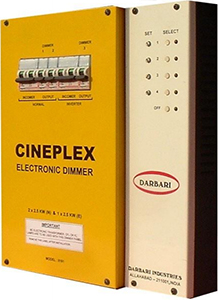

‘Cineplex’ Model 8191

1. 230V,50Hz,Single Phase 230V,50Hz,Single Phase
2. Dimmable Incandescent Load 2 x 2.5KW
3. Non-Dimmable Load 1 x 1KW
4. Delayed Switched Output for Inverter 1 x 1KW,AC
5. Time Delay adjustable 30 - 85 sec
6. Dimmable Range 0-100 %
7. Protection Incomer DP MCB 1 x 32A
8. Protection Outgoing SP MCB 2 x 10A
9. Dimming Technology Optically Isolated back to back thyristor switching
10. Cabinet Dimensions 250(H) x 360(W) x 75(D) mm
11. Cable Entry 3 nos holes at top

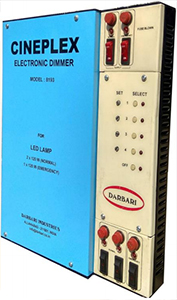

‘Cineplex’ Model 8193

1. 230V,50Hz,Single Phase 230V,50Hz,Single Phase
2. Dimmable Incandescent Load 2 x 2.5KW
3. Non-Dimmable Load 1 x 1KW
4. Delayed Switched Output for Inverter 1 x 1KW,AC
5. Time Delay adjustable 30 - 85 sec
6. Dimmable Range 0-100 %
7. Protection Incomer DP MCB 1 x 32A
8. Protection Outgoing SP MCB 2 x 10A
9. Dimming Technology Optically Isolated back to back thyristor switching
10. Cabinet Dimensions 250(H) x 360(W) x 75(D) mm
11. Cable Entry 3 nos holes at top
